Corrosion Test Chambers
High-resolution dosing and precision atomisation of saline solution
Fully transparent hood with servo-assisted opening (600–1200 litre models) or pneumatic lifting system (2300 litre model)
Automatic test stop function if the hood is opened during operation
Regulating valve with integrated manometer for compressed air flow control
Flowmeter for monitoring saline solution consumption
VDA (with or without cooling unit) and SAE J2334 test configurations available as options
Additional test standards available on request
A new approach

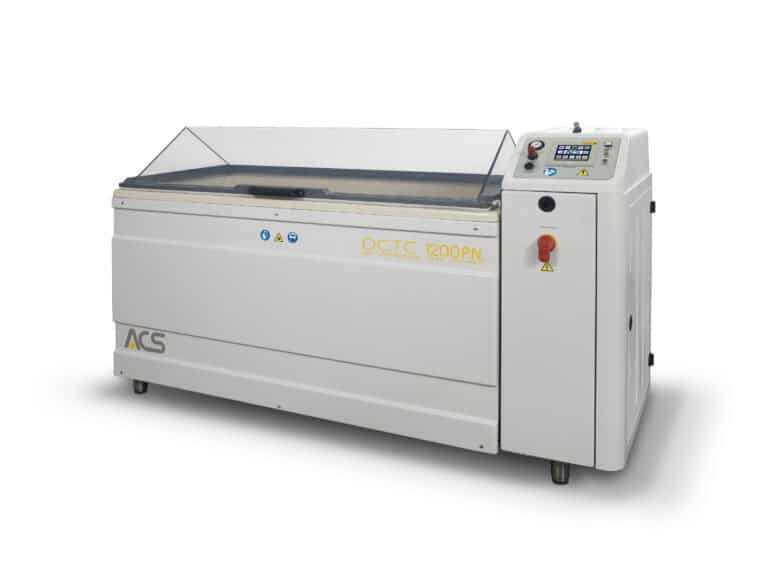

- 600 and 1200 litre models constructed entirely from anti-corrosion plastic materials

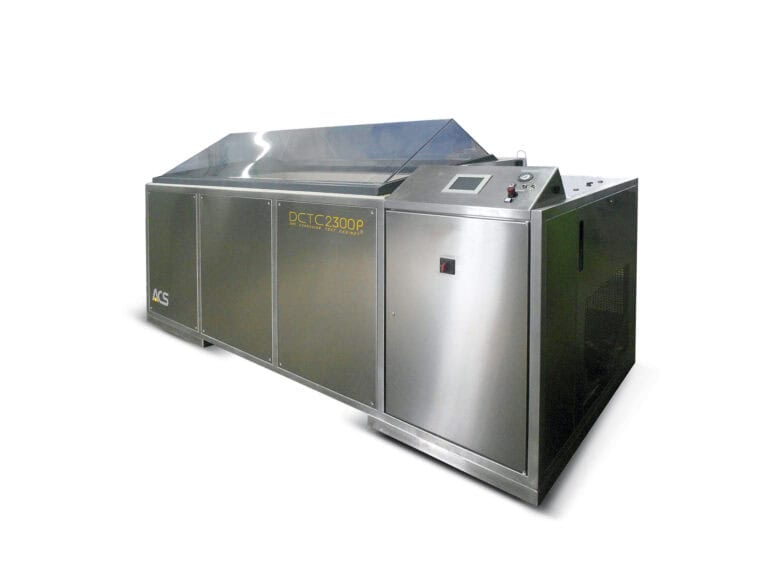

- 2300 litre model manufactured from AISI 304 stainless steel
- Advanced design that moves beyond the traditional concept of standard salt spray chambers
- Optional WinKratos™ remote control software for enhanced monitoring and chamber management
KeyKratos Plus™ Control System
Based on a PLC architecture, the KeyKratos Plus™ system features a colour touchscreen interface for setting and managing automatic and cyclic test programmes.
- 5.7-inch TFT touchscreen with 65,536 colours for responsive control
- Three memory media for storing cycles, recordings and alarms: memory board, USB pendrive and internal memory
- Touchscreen menu with contextual pop-up screens for intuitive navigation
- Optional ACS WinKratos™ remote control software enables management of single or multiple chambers (up to 16) via PC.
