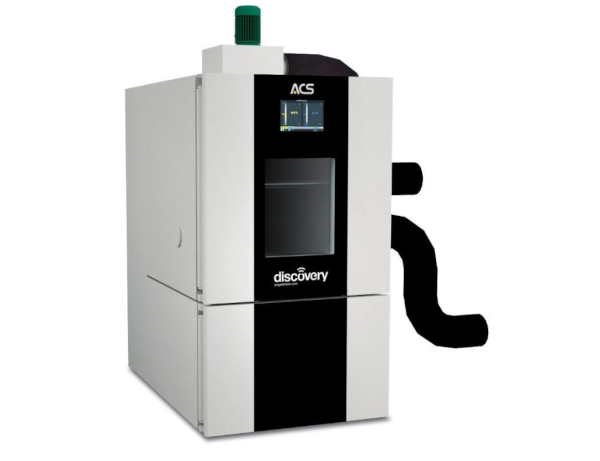

1076 litre climatic test chamber for hire

Ref. No.	1052
Internal Dimensions	1000 x 1130 x 953mm (WxDxH)
External Dimensions	1278 x 2222 x 2661mm (WxDxH)
Temperature Range	-70°C to +180°C
Rate of Change	5.4°C/min from -70°C to +180°C 4.5°C/min from +180°C to -70°C (values measured with plugs on)
Power Supply	400V / 3 Phase / 32 Amps +N +E
Port Holes	1 x 80mm dia. Left Hand Side 1 x 150mm dia. Right Hand Side (not available with external air treatment unit working)
Humidity Range	From 20% to 80% within the temperature range +20°C to +80°C (measured values at the end of the hose with the hose in by-pass)

ATT CLIMATIC TEMPERATURE TEST CHAMBER
