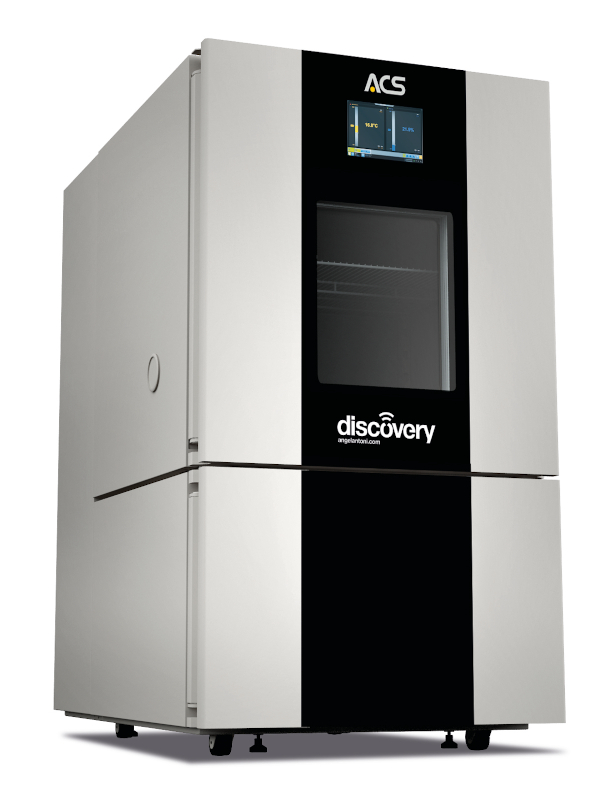

ATT CLIMATIC TEMPERATURE TEST CHAMBER

  • Mechanical cascade cooling system
  • 1170 kg
  • Programmable Logic controller
  • All hire chambers are calibrated to national and international standards.
  • Brochure (PDF)
Ref. No. 1042
Internal Dimensions 1000 x 1130 x 953mm (WxDxH)
External Dimensions 1278 x 2222 x 2111mm (WxDxH)
Temperature Range -75°C to +180°C
Rate of Change 2.3°C/min. Cooling from +180°C to -70°C
4.5°C/min. Heating from -70°C to +180°C
Power Supply 400V / 3 Phase / 32 Amp + N + E
Port Holes 1 x 80mm dia. Left Hand Side
1 x 150mm dia. Right Hand Side
Humidity Range 10% to 98% RH in the range +10°C to +95°C
