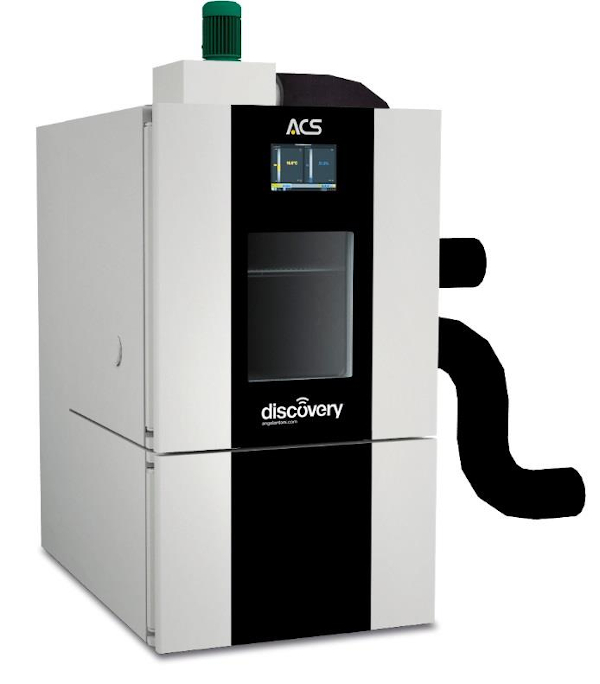

ATT CLIMATIC TEMPERATURE TEST CHAMBER

  • Mechanical cascade
  • 1320 kg
  • Programmable Logic controller
  • MyKratos control software
  • MyAngel interactice assistance system
  • All hire chambers are calibrated to national and international standards.
  • Brochure (PDF)
Ref. No. 1006
Internal Dimensions 1000 x 1130 x 953mm (WxDxH)
External Dimensions 1278 x 2222 x 2661mm (WxDxH)
Temperature Range -70°C to +180°C with plugs
-50°C to +150°C with hoses
Rate of Change 5.4°C/min in the range -70°C to +180°C
4.5°C/min in the range +180°C to -70°C
Power Supply 400V / 3 phase / 32 Amps + N + E
Port Holes 1 x 80mm dia Left Hand Side
Humidity Range 10% to 95% RH with plugs
20% to 80% RH with hoses
