CHAMBERS FOR THERMAL TESTS AND RADIO FREQUENCY MEASUREMENTS ON ANTENNAS

Features

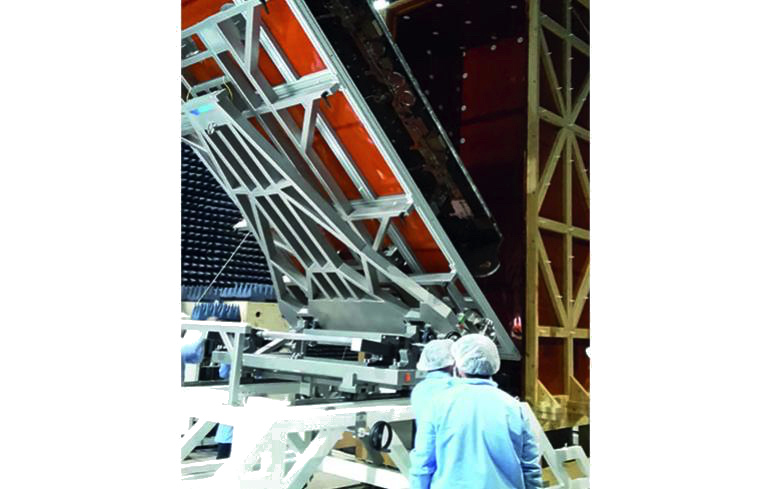

Example of a chamber customized according to the specifications requested by the customer.

• Chamber dimensions (LxDxH): 1800x2700x6000 mm
• Inside working dimensions (LxDxH): 1820x1350x4650 mm
• Inside working volume: 11 m³
• Temperature range: -60°C / +60°C
• Rate of temperature change:
  • 2°C/ min -60°C / +60°C
  • 2°C/ min +60°C / -60°C

CHARACTERISTICS: Combination of thermal tests and radio frequency measurements on antenna

Software

The software for this type of chamber is an application that includes all the functions based on the specifications requested by the customer. The chamber has a built-in control panel for controlling and managing its functions. The chamber can also be controlled remotely using the WinKratos software or an equivalent application.

Range

ACS can provide customized solutions that are adapted to the requests of every customer. Thanks to its accurate analysis of testing needs and highly specialized technical consultancy, ACS designs and manufactures environmental simulation chambers in the configuration most suitable for meeting the customer's testing needs.
