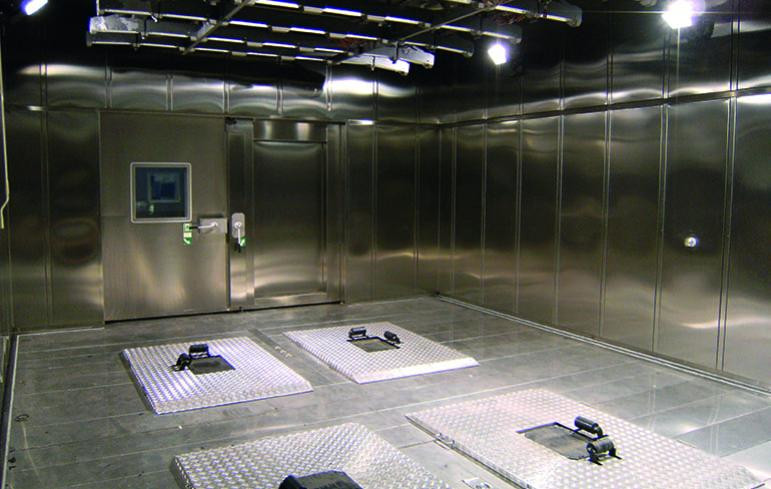

4-POSTER TEST CHAMBERS
ACS works in partnership with leading manufacturers of road simulation actuators to offer integrated systems that make it possible to simulate different road surface conditions together with a wide range of environmental conditions.
This type of climatic chamber can be used to test not only cars, but also agricultural and construction vehicles, scooters, and motorcycles. For demanding acoustic performance testing, a technologically advanced solution is applied inside the climatic chamber to reduce the noise of air circulation.
ACS can offer customized solutions thanks to its more than 60 years of experience in designing customized environmental simulation chambers, its technical know-how and the close attention given to the requests of all our customers.
Features
Example of a chamber built according to customer specifications.
- A special solution was designed for the interface between the floor of the climatic chamber and the actuators to avoid the formation of condensation or ice.
- Height: 4300 mm
- Width: 5400 mm
- Depth: 8000 mm
- Height between the IR irradiation device and the chamber floor: 3000 mm
- Holes in the floor for the 4-actuator system, 4 holes, according to wheelbase and track width.
- Adjustable wheelbase
- Adjustable track width
- Temperature range: +10°C to +80°C
- Relative humidity range: 15% to 95%
- IR irradiation system, Irradiated area: 5000 x 2500 mm
Software
The software for this type of chamber is an application that includes all the functions based on the specifications requested by the customer. The chamber has a built-in control panel for controlling and managing its functions. The chamber can also be controlled remotely using the WinKratos software or an equivalent application.
Range
ACS can provide customized solutions that are adapted to the requests of every customer. Thanks to its accurate analysis of testing needs and highly specialized technical consultancy, ACS designs and manufactures environmental simulation chambers in the configuration most suitable for meeting the customer's testing needs.
