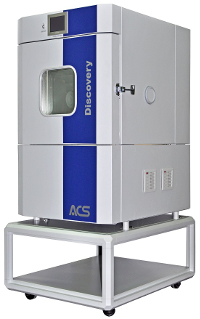

COMPACT TEST CHAMBERS (16, 60, 110 AND 200L) >DY-DY T
ACS Compact Test Chambers provide high efficiency in limited space. Small footprint, easy installation, low consumption, reduced noise level and reach basic configuration, including the observation window, make these chambers the ideal choice for any Research and Development Laboratory looking for compact units to test small components and products in the electronic and automotive fields.
They are equipped with the powerful KeyKratos Plus touchscreen control system, based on PID control through PLC, having the following advanced features:
- Memory capacity to 1000 cycles with 350 segments (on Secure Digital).
- Unlimited real time recording of temperature and humidity (only for 110 l) versus time (log on Secure Digital).
- Recordings in CSV format (Comma Separated Value) for easy export to Excel® from Secure Digital to Pen drive via USB interface placed on the front panel (program files are easily convertible into graphic format).
- Messages on scheduled maintenance activities.
- A trend chart for recorded variables available with a scale from -100/+200.
- Synoptic graphs for the chamber, low stage refrigeration and high stage refrigeration.
ACS Bench top Chambers can provide a temperature range from -40 to +130°C (16 l) or -70 to +180°C (60 and 110 l) and humidity range from 10% RH to 95% RH (110 l). All the models only require a single-phase electrical supply.
Potential-free contact for switching-off test specimens, UV lamp and additional shelves are available as options for the 110 l model.
16, 60 and 110 l chambers can easily sit on a laboratory bench top and the 110 l model can be supplied with an optional supporting table with wheels.
Multi-chamber remote control is available as option together with WinKratos S/W.
NOTE: Accessories included in the basic configuration and options are listed in the datasheet available for download.
