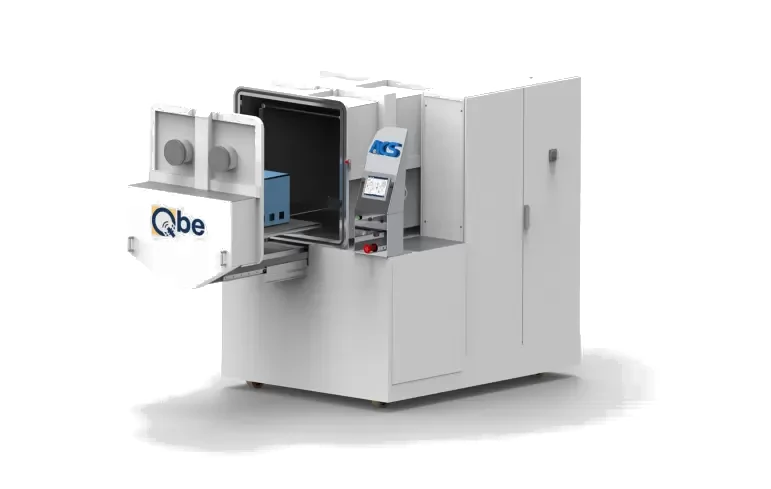

QBE THERMAL VACUUM CHAMBER FOR CUBESAT AND SMALL SATELLITE TESTING
Adhering to the space industry's current trends of making technology smaller, lighter, and more affordable to launch, our newest Thermal Vacuum Chamber, Qbe, provides a range of testing functionalities tailored for both CubeSats and small satellites.
Emphasizing a compact design alongside flexible test performances and advanced functionalities, Qbe stands as an ideal solution for meeting the demands of start-ups, research bodies, space industry in every market, facilitating space exploration goals.
Features
- Overall external dimensions: 1500 x 2200 x 2050mm (WxDxH)
- Testing area: 700 x 700 x 700mm
- Temperature range: from -60°C to +120°C with mechanical cooling
- Working pressure: 1x10-6 mbar
- Purpose: test on CubeSats, LEO, nano and micro satellites
- Compact design for easy positioning
- Plug-in type, only electrical supply is required
- ISO8 class clean room compliant
- Low GWP refrigerant gas
- Sliding door for an ideal test set-up and DUT handling
- Thermal shrouds
- Black painted thermal plate usable as shroud
- Access holes front and lateral sides
- Graphical User Interface panel on board and SW (Windows compatible) for PC remote control
- Movable on wheels equipped with braking system
- Integration-ready with data measuring instruments like DAS, RGA and TQCM
- Low running costs
Software
Qbe has a built-in control panel for controlling and managing its functions. It can also be controlled remotely using the WinKratos software or an equivalent application.
Range
ACS can provide customized solutions that are adapted to the requests of every customer. Thanks to its accurate analysis of testing needs and highly specialized technical consultancy, ACS designs and manufactures environmental simulation chambers in the configuration most suitable for meeting the customer's testing needs.
