- Wider product range
- New Design to improve industrialisation
- Optimized footprint thanks to refrigeration units
Main features
Anyvib allows an easy interface with various types of shakers:
- Vertical movement of test chamber
- Horizontal movement (optional, manual or automatic)
- Removable floor
Wider product range
- 600, 1200 and 2200 litres
- +180/-70°C (AV...C) with temperature change rates of 5, 10, 15°C/min
- +180/-40°C with temperature change rate of 5°C/min
- Climatic and Thermostatic (AV...T) versions
Model names (example):
AV600 5 = Climatic Vibration Chamber 6001, +180°C to -40°C, 5°C/min
AV 600 TC 5 = Thermostatic Vibration Chamber 6001, +180°C to -70°C, 5°C/min

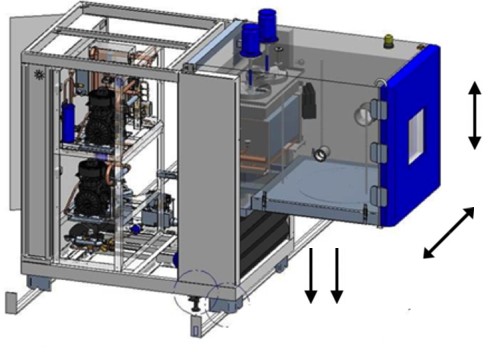

Automatic up-down system
- Together with the steel floor and cover plug, it is possible to easily transform the chamber to a common climatic (or thermostatic) chamber by simply lifting the test cabinet up a little bit.
- Maximum flexibility in terms of coupling with shakers (future evolutions)

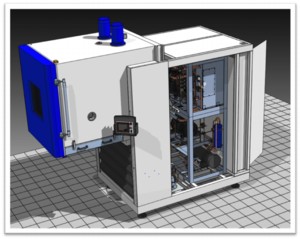

New robust design to improve industrialisation
- New carbon steel frame (stiffer)

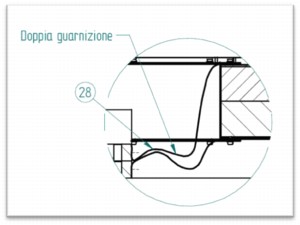

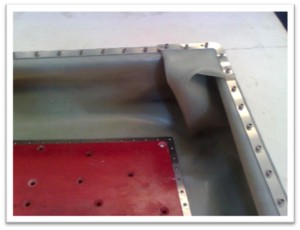

- +180°C steel floor with double silicone gasket and cover plug supplied
- More care about details
Optimised footprint thanks to new refrigeration units
Thanks to new standard refrigeration modules, it has been possible to design a more compact chamber, mainly for 600 and 1200 litre models.
ACS are confident that they have reached the best compromise in terms of footprint/maintenance needs.
Footprint (m²)
| Model | Current | New | Delta% |
| AV600 5 | 4.6 | 4.0 | -13% |
| AV600 C 5 | 4.6 | 4.0 | -13% |
| AV600 C 10 | 5.0 | 4.0 | -19% |
| AV600 C 15 | 5.0 | 4.0 | -19% |
| AV1200 5 | 5.7 | 5.3 | -7% |
| AV1200 C 5 | 5.7 | 5.3 | -7% |
| AV1200 C 10 | 5.7 | 5.3 | -7% |
| AV1200 C 10 | 7.3 | 5.3 | -27% |

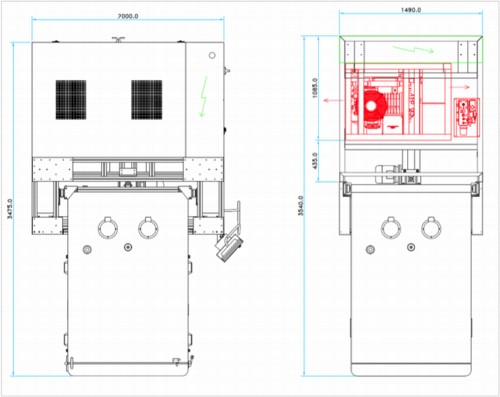

Example of footprint evolution
- Slightly longer, but 500mm narrower
- Larger electric cabinet, 200mm more
- Improved maintenance access
Price evolution
- Standard approach on production (common modules with other machines, thus ACS have the benefit of higher quantity production)
- Standard approach on design (we anticipate customer needs in order to have the solution on the standard chamber)

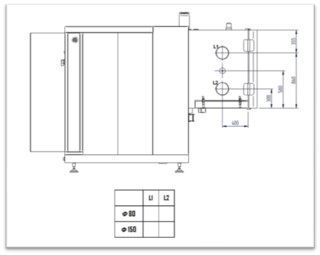

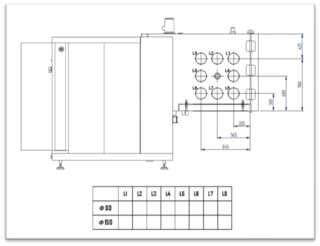

Lean management of portholes
Same procedure of Discovery Chambers, with a matrix of possible positions among which to choose in ordering phase.
Lean management of vertical vibration floor
As defined set of standard floor with different hole diameters available on the basic configuration of the chamber.
If not specified contextually to the order, the largest hole diameter will be supplied.
Standard available floor
| Chamber | Hole diameter | Note | Head extenter 140mm (h) |
| 600 | Ø360mm | Ø180 or 240mm | |
| Ø480mm | Ø340mm | ||
| Ø580mm | Default option unless otherwise specified | Ø440mm | |
| 1200 | Ø480mm | Ø340mm | |
| Ø580mm | Ø440mm | ||
| Ø780mm | Ø440 or 640mm | ||
| Ø900mm | Default option unless otherwise specified | ||
| 2200 | Ø580mm | Ø440mm | |
| Ø780mm | Ø580 or 640mm | ||
| Ø980mm | Ø840mm | ||
| Ø1200mm | Default option unless otherwise specified |
For extreme temperatures
(recommended):
Floor with suitable hole according to table
+ Head Extender with Thermal Barrier
+ 2 Silicone Gaskets (supplied by ACS)
Cost effective solution
Floor with suitable hole
+ 20mm Thermal Barrier
+ 1 Silicone Gaskets (supplied by ACS)
Price evolution
- Only one option of price list of each chamber, with largest square hole (540 x 540mm on 600L, 880 x 880mm on 1200L and 2200L
- Double Silicone Gasket System
On request
Special Hole Dimension and Coupling System
