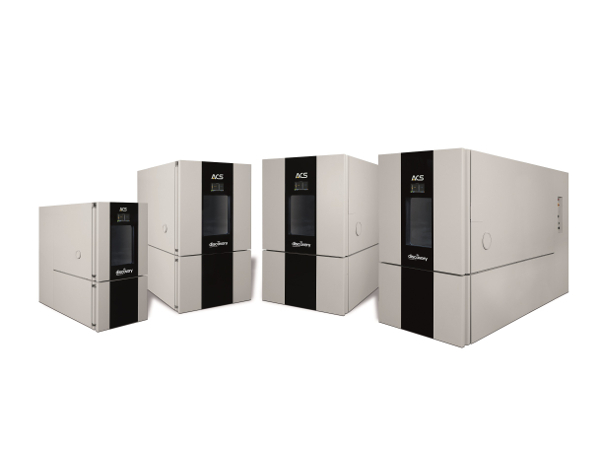

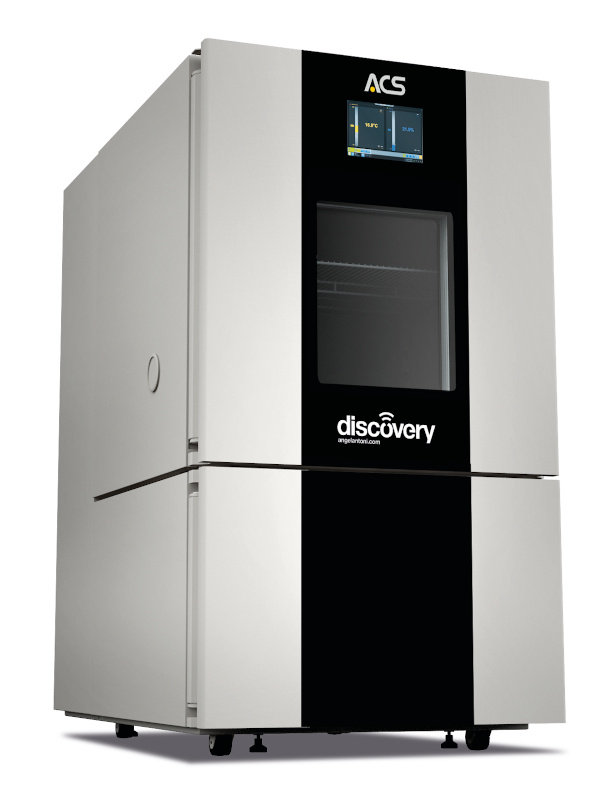

DISCOVERY MY CLIMATIC CHAMBERS
ACS Discovery My Climatic and Thermostatic Chambers guarantee high performance, a generous standard configuration and a large number of accessories for adapting to all the requests of our customers.
The test helps to reveal potential defects before the specimen passes into production, ensuring:
- A product of tested quality
- Savings on design costs
- Lower maintenance costs
- More satisfied customers
Features
The wide range of the ACS Climatic and Thermostatic Chambers allows you to control the temperature and humidity inside the test compartment, in a range from -70°C to +180°C (temperature) and from 10% to 98% (relative humidity).
Benefits
- The compact body in RAL 7044 grey provides excellent corrosion protection with a powder coated finish
- The electromagnetic door lock provides maximum operator safety
- 10" touchscreen panel with an intuitive, user-friendly interface
- New software that allows remote control of all chamber functions
- Automatic reporting, self-diagnosis, preventive maintenance
Standard configuration
- Inspection window
- Ecological refrigerant gas in line with the European Regulation 517/2014
- Internal light
- Electromagnetic door lock
- Wheels and feet
Accessories
- Additional portholes
- Water-cooled condenser
- UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
- UPS for the PLC
- Stainless steel internal shelves
- Notched porthole
Software
The MyKratos™ management software is embedded in the machine in built-in and completely dedicated hardware, which allows the control and management of the chamber functions. No installation is required, and it can be accessed from a PC via web browser or via the free app developed for tablets and smartphones. MyKratos™ allows multiuser and multilevel connections, even from different devices.
The MyAngel24™ self-diagnosis and remote service module is also available and included with the software.
