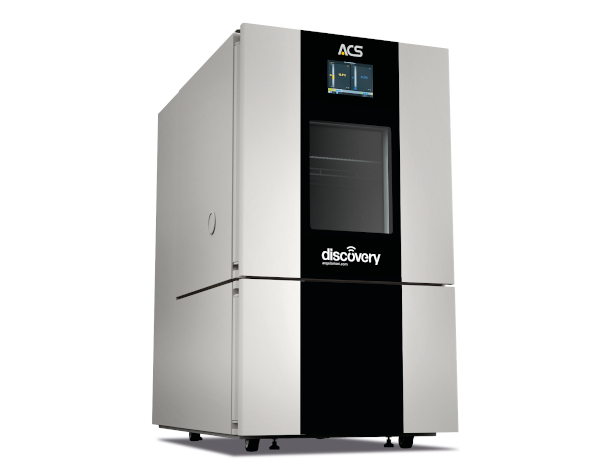

AVAILABLE NOW ! DISCOVERY CLIMATIC CHAMBER MODEL: DM600 E

Control System

PLC control system and MyKratos™ user interface, a powerful supervision and management software operating on the 10 inch on board display and from mobile and desktop devices.

The wireless connection (WiFi) permits operation using Tablets and Smartphones (iOS and Android compatible).

It is also possible to remotely access the operator interface via customer's LAN connections.

MyKratos™ main features:

• Archiving of acquired measures
• Storing cycles of 350 segments and delaying their execution
• Ability to upload, edit, export and delete already existing cycles
• Storage of alarms and events occurred during chamber operation
• Visualization and graphical analysis of measures and recordings
• Calculation of Measure Slopes and reports generation
• Display of operating synoptics in graphic format
• Ability to select more than one chamber from a single Tablet: secure access by means of Multiple Password levels
• High configurability of chamber parameters
• Ability to send e-mail and SMS notification

MyAngel24™ remote-assistance system via GPRS/UMTS wireless connection, complete with SIM card. Cabled connection is also available, via customer's LAN.

With the remote-assistance system operating via mobile network wireless connection, complete with SIM card, it is also possible to remotely access the operator interface via VPN and to send SMS notifications.

N.B. The activation of MyAngel24™ must be confirmed by the customer with the appropriate form attached to the offer, to be returned with the order.

Included Accessories

• Gatekeeper® electromagnetic door closers
• Self-pivoting wheels and feet
• 450 x 550mm multipane inspection window
• Self feeding system (town water through chamber embedded softener)
• 1 x Shelf
• 1 x Lateral porthole (80mm dia.) on the left side
• 1 x Lateral porthole (150mm dia.) on the right side
• Internal lighting
• Air condenser
• RH measurement by psychrometric system
• Ethernet port
• Digital undertemperature/overtemperature switch with independent probe
• Auxiliary contacts (specimens and alarms)
• MyAngel24™
• MyKratos™

The software source code and the relative documentation are not included.
