FOR SALE: THERMOTRON TEMPERATURE CHAMBER
£35,000 + V.A.T.
| Manufactured: | 2006 |
| Temperature Range: (measured at probe) |
+15°C to -70°C to +177°C +15°C to +177°C to -70°C According to IEC 60068-3-5, IEC 60068-3-6 (average values without any load with ambient temperature +22°C) |
| Internal Dimensions: | 1016 x 1016 x 915mm (WxDxH) |
| External Dimension: | 2268 x 2283 x 2109mm (WxDxH) (+270mm for fan motors) |
| Portholes: | 2 x 150mm dia. (one left, one right) |
| Water Requirement: | 1.14 litres per min @ 23°C 2 litres per min @ 30°C 2 Bar Minimum Pressure |
| Power Supply: | 400 V phase +n+e 50 Hz full load amps |

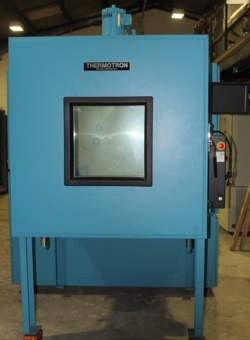

Front view
Back view
Side view
Rate plate
This chamber is at our factory premises in Nazeing, if you would either like more information or if you would like to visit our factory and view this chamber - please email trevor.leake@ets.co.uk or alternatively call him on 01992 899440
