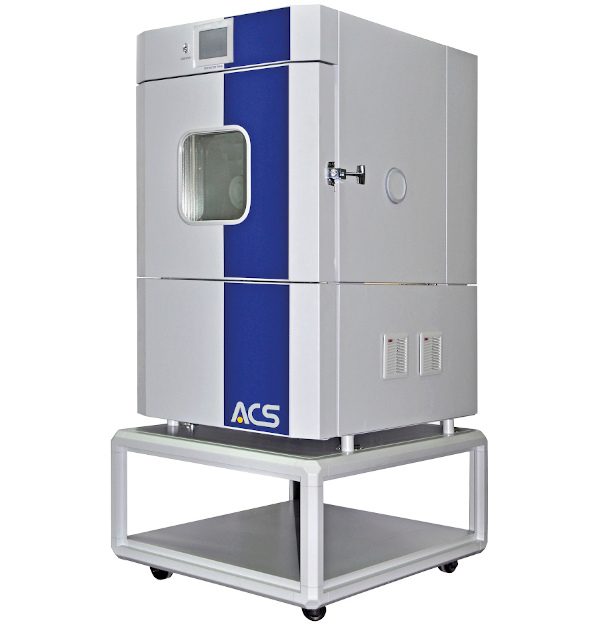

DY160C - ACS CLIMATIC TEMPERATURE TEST CHAMBER

With ACS Compact Chambers it is possible to carry out both climatic and thermostatic tests. These are benchtop chambers that offer high performance in small spaces.

• Reduced size
• Easy installation
• Low energy consumption
• Low noise emissions
• Complete configuration including an inspection window

A compact climatic chamber for use in R&D departments that need to test small components and limited size products.

Features

• The compact body in RAL 9006 grey provides excellent corrosion protection with a powder coated finish
• Ecological refrigerant gas in line with the European Regulation 517/2014
• Touchscreen panel with TFT technology for faster control

Standard Configuration

• Easy data entry during editing, control and cycle management operations
• Inspection window
• Ecological refrigerant gas in line with the European Regulation 517/2014
• Internal light
• Mechanical door lock

Accessories

• Additional portholes
• Water-cooled condenser
• Cart with wheels
• UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
• Internal shelves: in AISI 304 stainless steel, height adjustable, grid shelves to be added to the one supplied
• Notched porthole
• New R472B refrigerant gas

Software

The Compact Test Chambers are equipped with the powerful KeyKratos Plus touchscreen control system, based on PID control through PLC, having the following advanced features:

• Memory capacity to 1000 cycle with 350 segments
• Unlimited real time recording of temperature and humidity versus time (LOG)
• A trend chart for recorded variables available with a scale from -100/+200
• Messages on scheduled maintenance activities
• Synoptic graphs for the chamber, low and high stage refrigeration
• Data saved in CSV format (CommaSeparated Value) for easy export to Excel® (only for 110 and 200 l) via USB interface located on the front panel (program files are easily convertible into graphic format)
