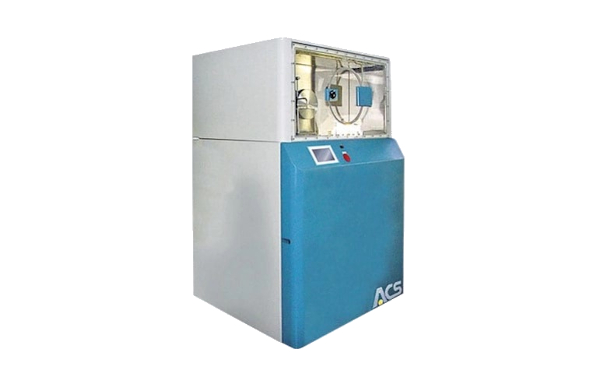

LIQUID TO LIQUID THERMAL SHOCK CHAMBERS
Features
The range of climatic chambers for "liquid-to-liquid" thermal shock tests includes two models: CSTL (12 and 20 l).
Two powerful compressors are cascaded and provide fast, reliable, temperature cooling performance. The basket movement is electrically operated and has a transition time from one chamber to the other of less than 10 seconds.
The chamber is equipped with a "bellows" used for pressure compensation during test operations. This avoids overpressure inside the chamber which could force open the door and cause fluoride leaks.
Standard configuration
- Mounted on wheels
- Basket delayed start system
- New design with body in RAL7035 light grey and doors in RAL5015 blue
- Ethernet port
- RS232 serial interface
Accessories
- Plexiglas control panel cover
- Extension up to +200°C
- Vapor suction duct
- Butterfly valve
Software
The KeyKratos Plus management software is embedded in the machine in built-in and completely dedicated hardware, which allows the control and management of the chamber functions. The chamber can be accessed remotely to take advantage of the advanced functions (such as the visual creation of thermoclimatic profiles, recordings management and graph analysis) using the WinKratos software that can be installed on a company PC.
